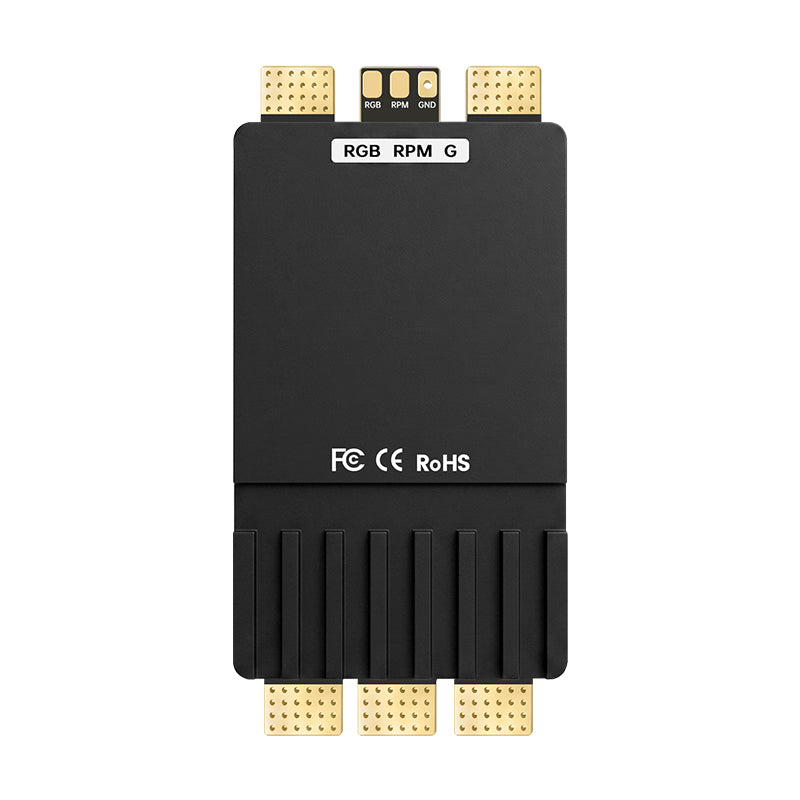

WBP Atlas Sink 16S120A G1(AM32) ESC Support for UAV, RC Models, Agri Drones & Marine Models
WBP Atlas Sink 16S120A G1(AM32) ESC Support for UAV, RC Models, Agri Drones & Marine Models
Specs:
| Model | Atlas Sink 16S120A G1 |
| Firmware | AM32_WBP_AT16120G1_F421_2.19 |
| Voltage | 5S~16S Lipo |
| Peak Current | 200A(3S) |
| Continuous Current | 120A(45S); 60A(3 mins, under good heat dissipation condition) |
| Programming Tool | ESC Config Tool |
| Input Source Support | PWM / Dshot300 / Dshot600 |

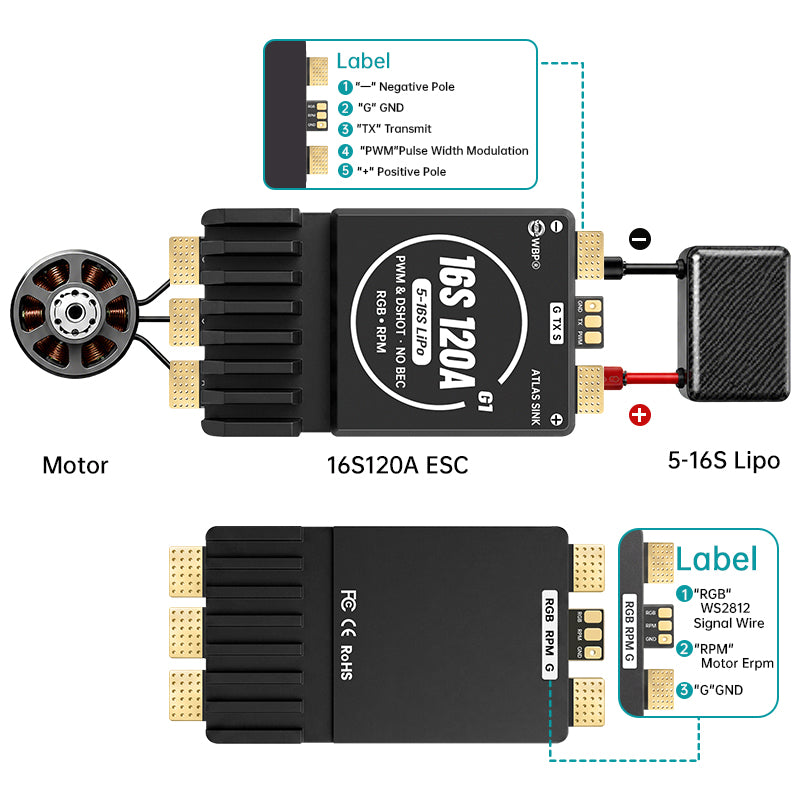

| Data Transmission | TX Port |

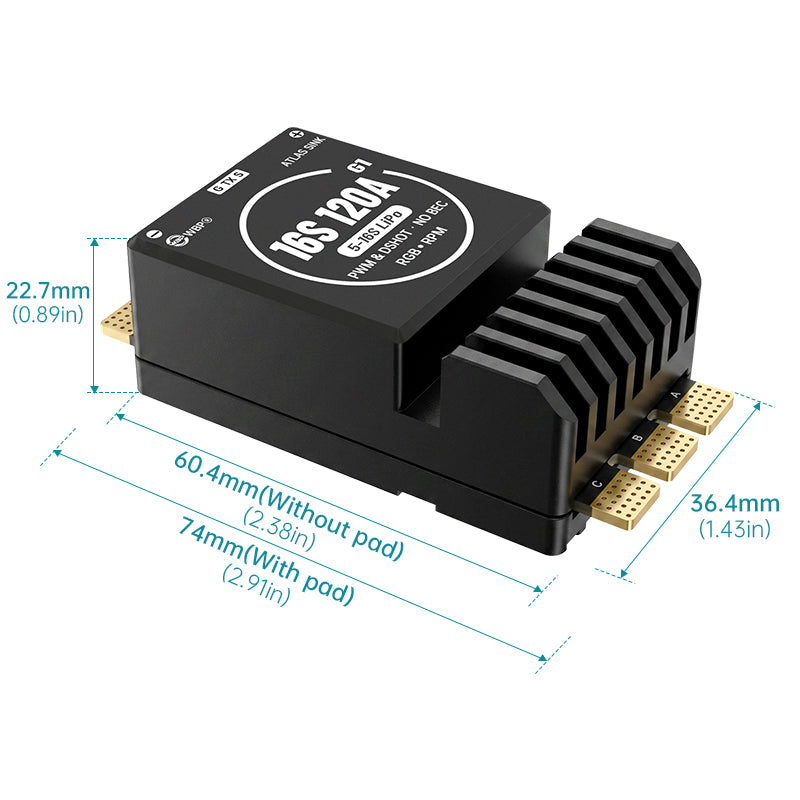

| Size |
L74mm*W36.4mm*H22.7mm(with pad); L60.4mm*W36.4mm*H22.7mm(without pad) |

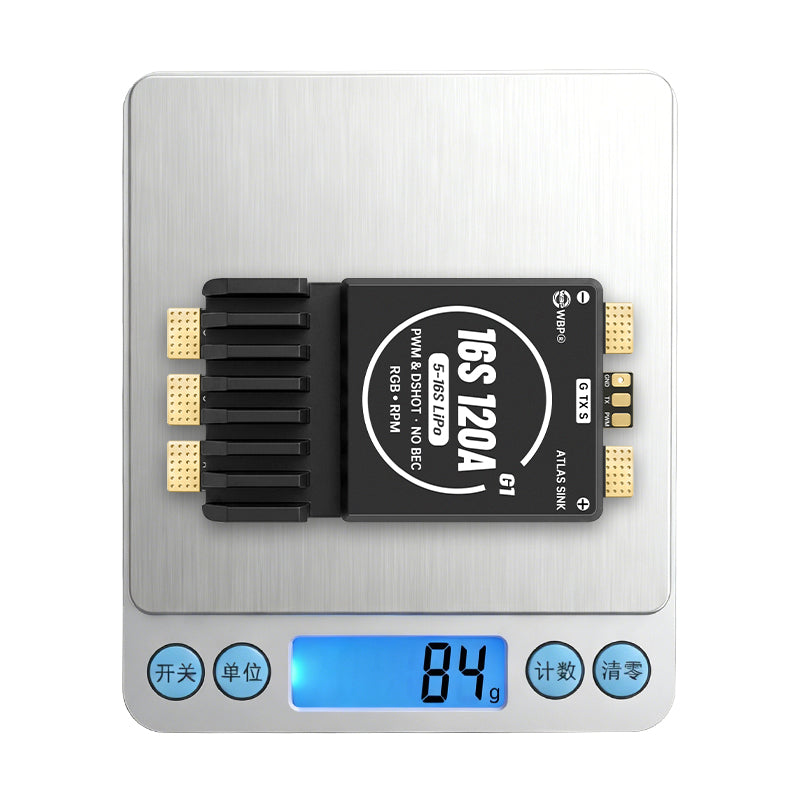

| Weight | 84g |
Features:
(1) High-performance CPU: core MCU: AT32F421K8U7, with high efficiency of 120MHZ.
(2) Adapt optimized AM32 with fast response and excellent performance.
(3) PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.Using a 6-layer design with a 3OZ thick copper layer as well as large-diameter copper strips on the main power lines, greatly increasing the current-carrying and heat dissipation capability.
(4) Wide voltage input: support 5~16S Li-po input, suitable for 10-20 inches medium and high-voltage drones with X-Class structure.
(5) Support multiple input source: once ESC was powered on, it will auto detect the throttle signal. Support Servo PWM, one-way and both-way Dshot(300,600).
(6) Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
(7) Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
(8) Support upgrade/parameters setup via ESC Config Tool/web.
(9) Compact layout with light weight, suitable for UAV with limited arm space.
(10) Support RPM square wave signal output, making it easier for customers to measure the motor rpm.
(11) Support WS2812 RGB light signal control, enabling customers to identify the working status of the motor controller easily.
(12) Built-in precise current and temperature sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
(13) Adapt silicone twisted pair as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
(14) Equipped with an aluminum alloy radiator, efficiently dissipating heat and improving working stability in a long term.

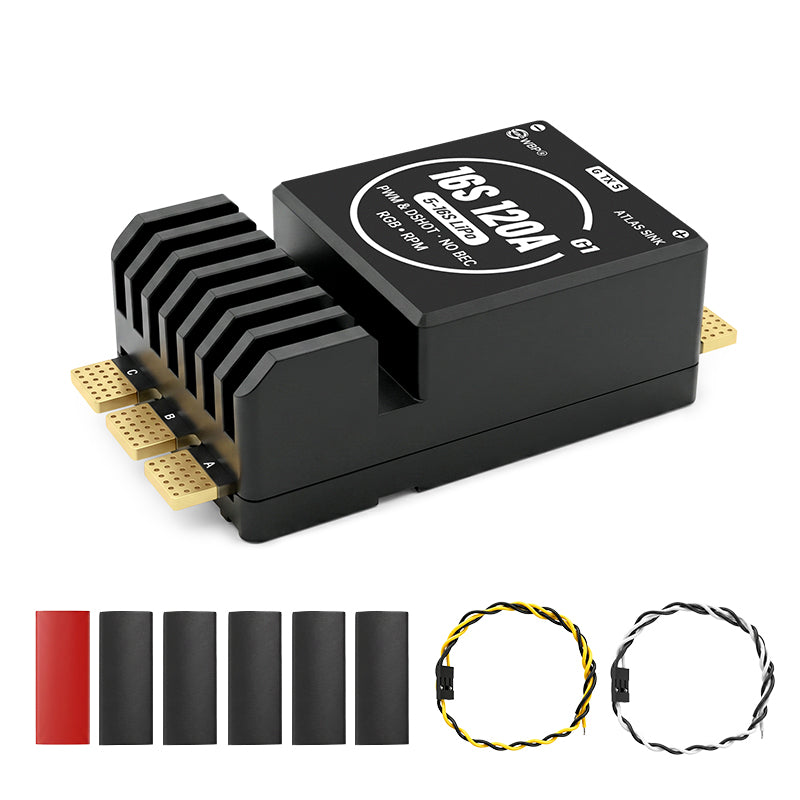

Package Included:
(1) WBP Atlas Sink 16S120A G1(AM32) ESC * 1
(2) Heat Shrink * 6
(3) Signal Wire * 2
(4) Packing Box * 1
(5) Anti-static Bag * 1
