WBP Atlas Sink 16S80A G1 ESC (AM32 Firmware) Support for Multirotors, RC Cars, Agri Drones & Marine Models
WBP Atlas Sink 16S80A G1 ESC (AM32 Firmware) Support for Multirotors, RC Cars, Agri Drones & Marine Models
Specs:
| Model | Atlas Sink 16S80A G1 |
| Firmware | AM32_WBP_AT1680G1_F421_2.19 |
| Voltage | 5S~16S Lipo |
| Peak Current | 160(3S), 120A(10S) |
| Continuous Current | 80 A(60S); 45A(5 mins) (under good heat dissipation condition) |
| Power Wire | 12 AWG |
| Programming Tool | ESC Config Tool |
| Input Source Support | PWM / Dshot300 / Dshot600 |

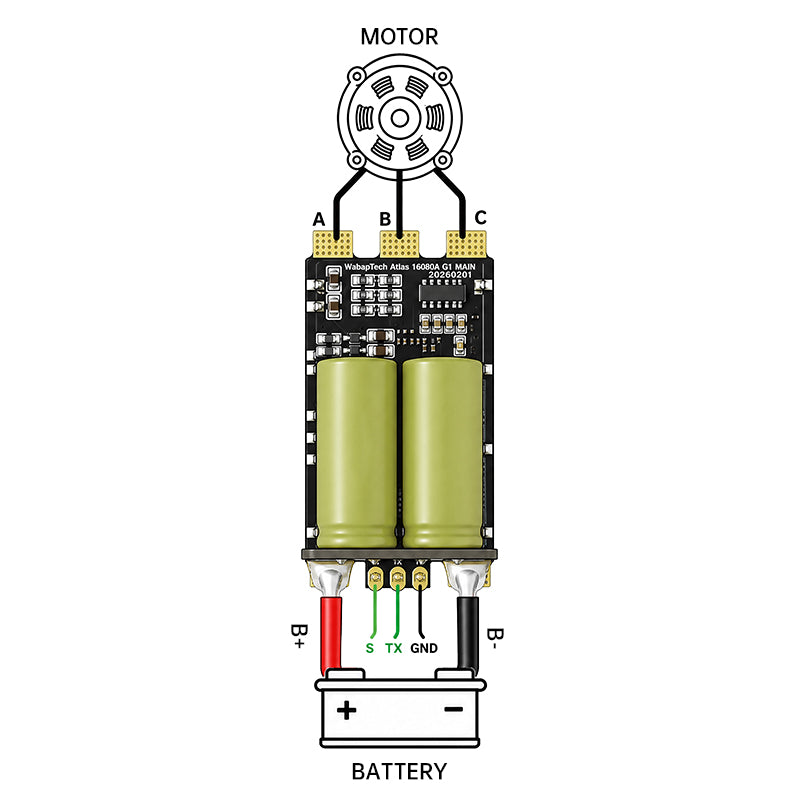

| Data Transmission | TX Port |

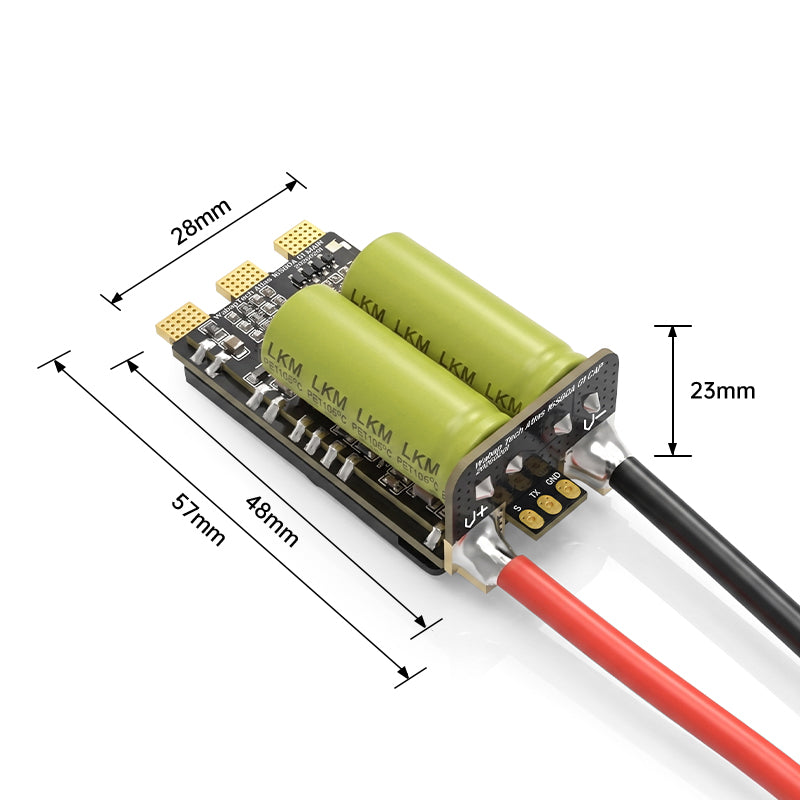

| Size | L57mm*W28mm*H23mm(without power wire) |

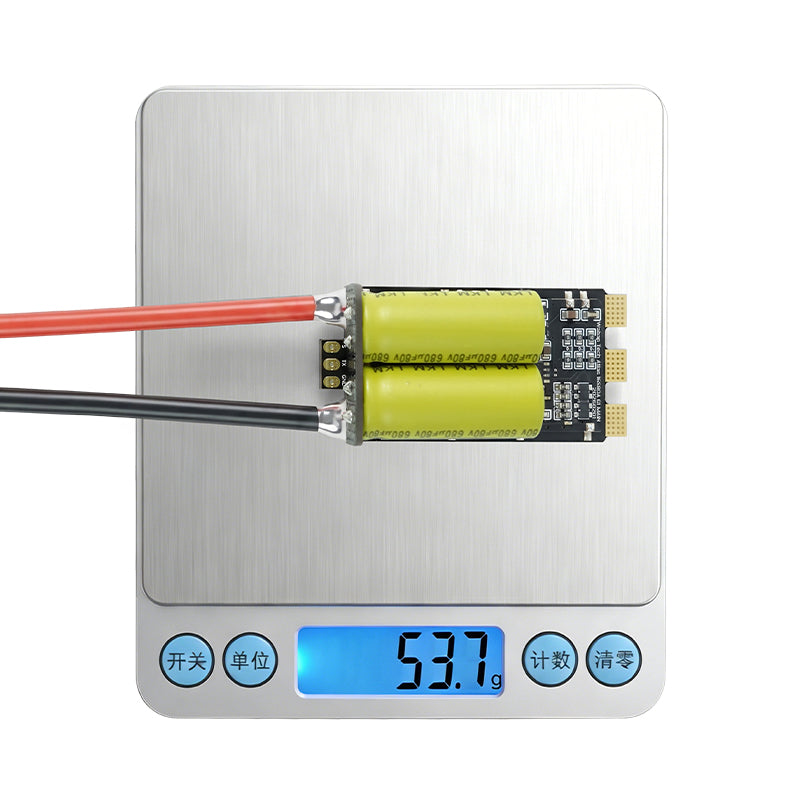

| Weight | 53.7g(with power wire) |
Features：
(1) High-performance CPU: AT32F421K8U7, with high efficiency of 120MHZ.
(2) Excellent PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.
(3) Using a 6-layer design with a 3OZ thick copper layer, greatly increasing the current-carrying and heat dissipation capability.
(4) Compact layout with light weight, suitable for UAV with limited arm space.
(5) Built-in precise current and temperature sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
(6) Adapt optimized AM32 with fast response and excellent performance.
(7) Excellent structuring design greatly increasing the current-carrying and heat dissipation capability.
(8) Wide voltage input: support 5~16S Li-po input, suitable for 13-20 inches drones with X-Class structure.
(9) Support multiple input source: Auto detect the throttle signal once powered on. Support Servo PWM, one-way and both-way Dshot300 & Dshot600.
(10) Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
(11) Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
(12) Support upgrade/parameters setup via ESC Config Tool/web.
(13) Compact layout with light weight, suitable for UAV with limited arm space.
(14) Adapt double-stranded silicone wires as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
(15) Equipped with an aluminum alloy radiator, efficiently dissipating heat and improving working stability.

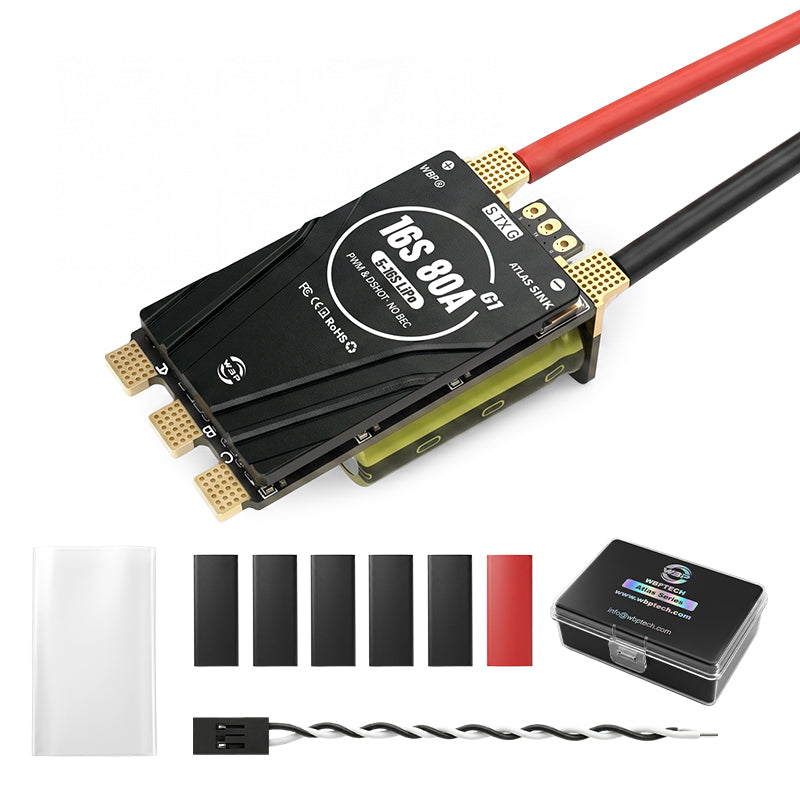

Package Included:
(1) WBP Atlas Sink 16S80A G1 ESC * 1
(2) Heat Shrink * 6
(3) Transparent Heat Shrink * 1
(4) Signal Wire * 1
(5) Packing Box * 1
(6) Anti-static Bag * 1
