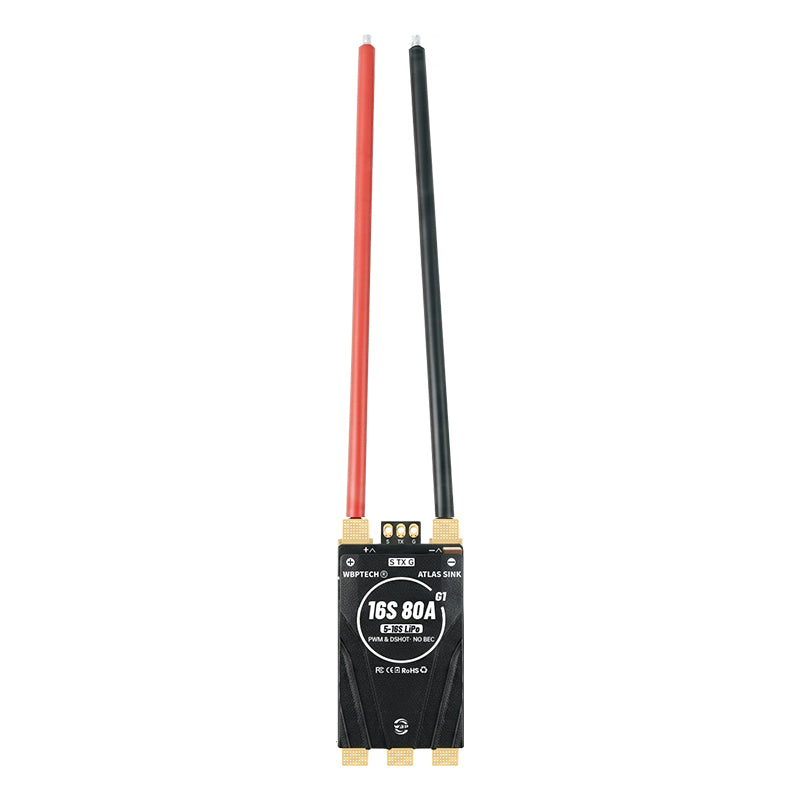

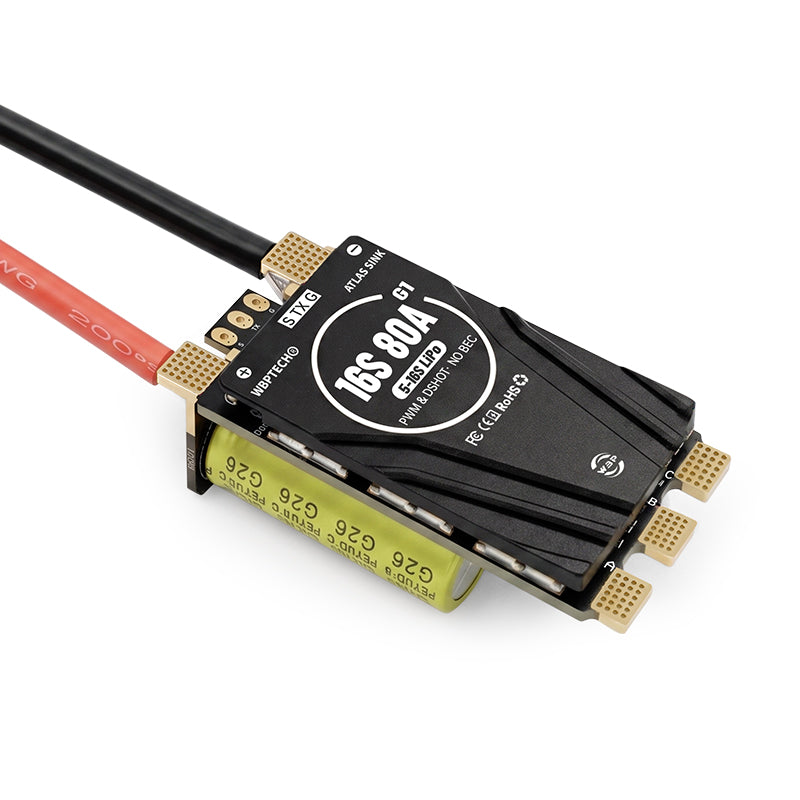

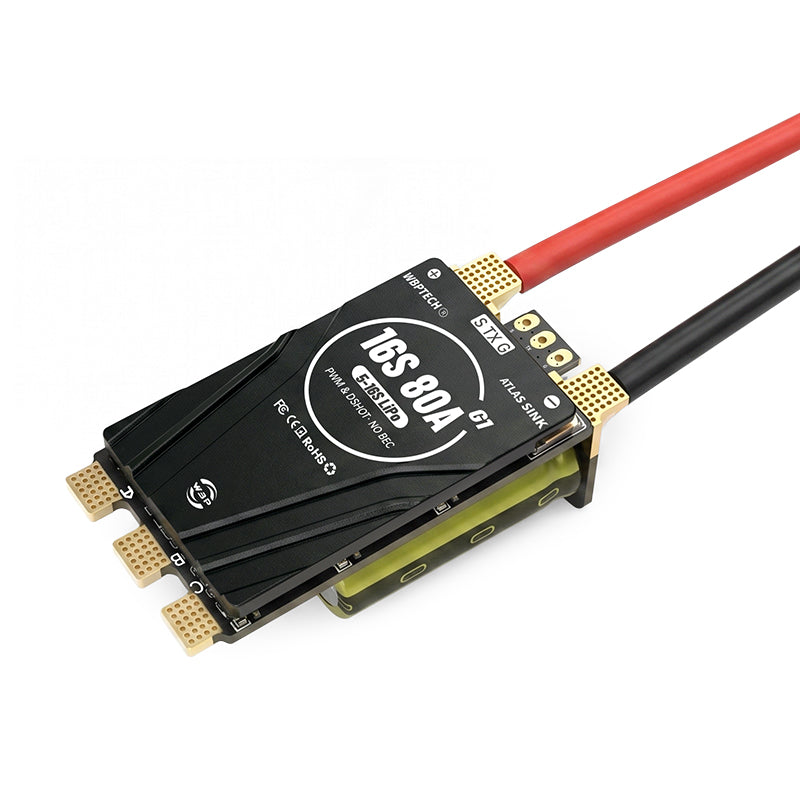

WBPTECH Atlas Sink 16S80A G1 ESC AM32 Firmware Support for Multirotors, RC Cars, Agri Drones & Marine Models
WBPTECH Atlas Sink 16S80A G1 ESC AM32 Firmware Support for Multirotors, RC Cars, Agri Drones & Marine Models
Couldn't load pickup availability
Specs:
| Model | Atlas Sink 16S80A G1 |
| Firmware | AM32_WBPTECH_AT1680G1_F421_2.19 |
| Voltage | 5S~16S Lipo |
| Peak Current | 160(3S), 120A(10S) |
| Continuous Current | 80 A(60S); 45A(5 mins) (under good heat dissipation condition) |
| Power Wire | 12 AWG |
| Programming Tool | ESC Config Tool |
| Input Source Support | PWM/ Dshot300/ Dshot600 |
| Data Transmission | TX Port |
| Size | L57mm*W28mm*H23mm(without power wire) |

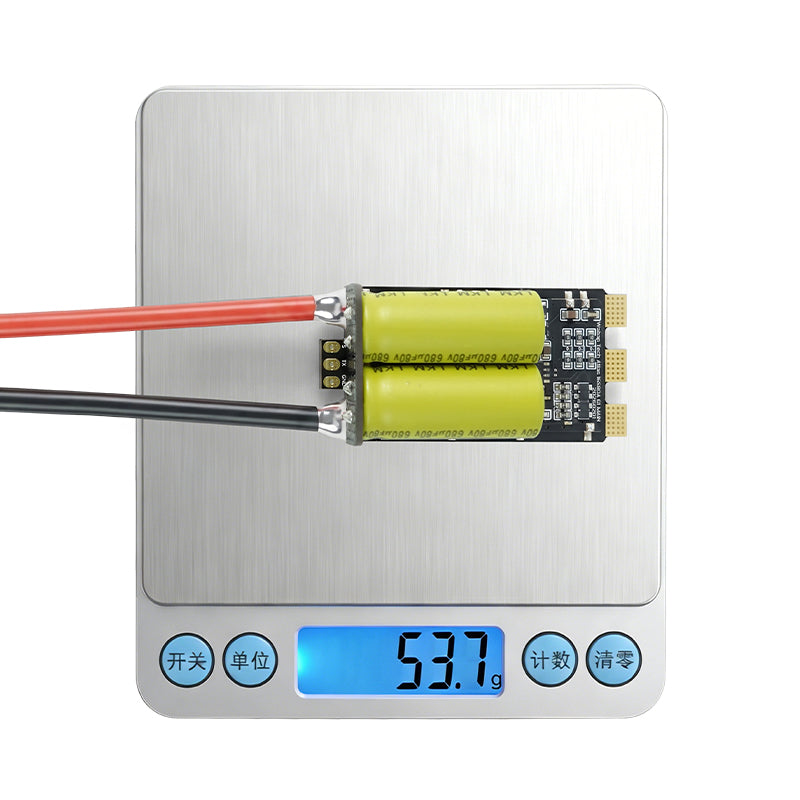

| Weight | 53.7g(with power wire) |
Features:

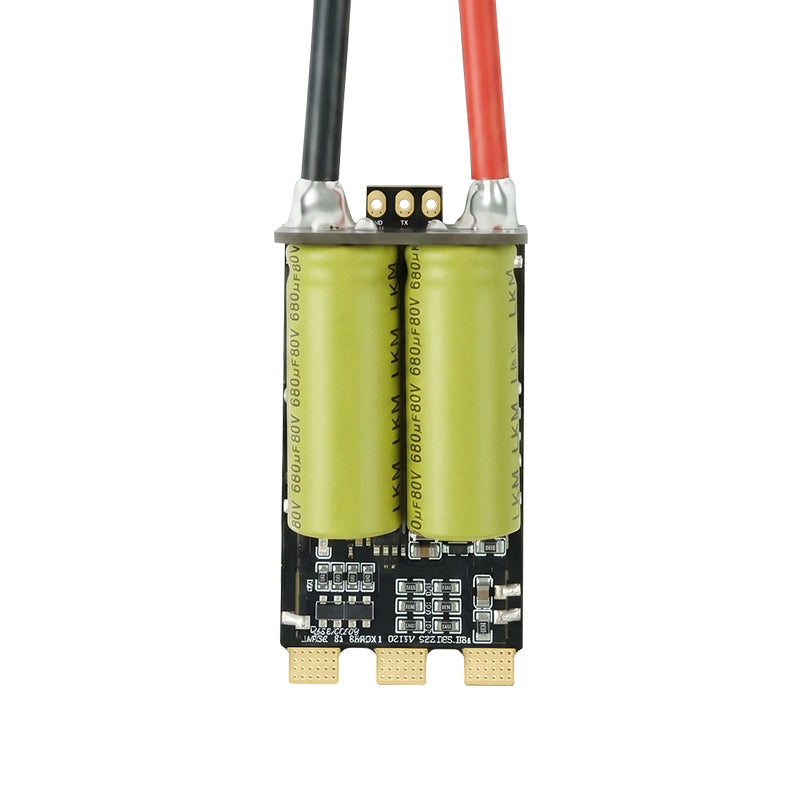

PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.Using a 6-layer design with a 3OZ thick copper layer, greatly increasing the current-carrying and heat dissipation capability.
Wide voltage input: support 5~16S Li-po input, suitable for 10-18 inch drones with X-Class structure.
Compact layout with light weight, suitable for UAV with limited arm space.
Built-in precise current and temperature sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
Adapt double-stranded silicone wires as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
Shipping List:
1. Packing Box
2. Anti-static Bag
3. ESC
4. Heat Shrink
5. Signal Wire
6. Transparent Heat Shrink
Wiring Diagram:
