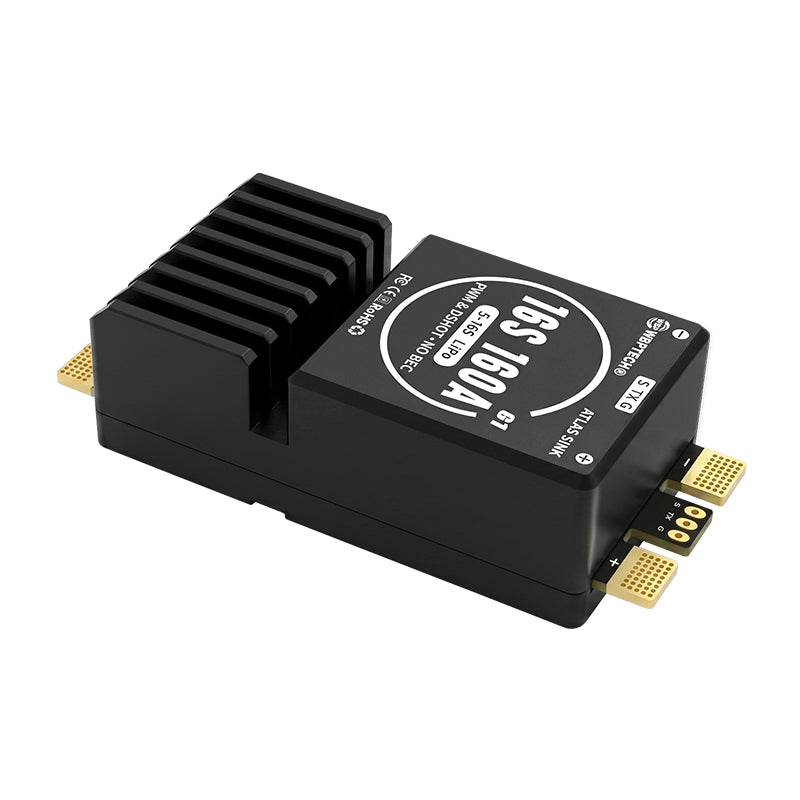

WBPTECH Atlas Sink 16S160A G1(AM32) Support for Multirotors/UAV/FPV/ RC Planes/Agri Drones
WBPTECH Atlas Sink 16S160A G1(AM32) Support for Multirotors/UAV/FPV/ RC Planes/Agri Drones
Couldn't load pickup availability
Features:
(1) High-performance CPU: core MCU: AT32F421K8U7, with high efficiency of 120MHZ.
(2) Adapt optimized AM32 with fast response and excellent performance.
(3) Excellent structuring design greatly increasing the current-carrying and heat dissipation capability.
(4) Wide voltage input: support 5~16S Li-po input, suitable for 13-20 inches drones with X-Class structure.
(5) Support multiple input source: Auto detect the throttle signal once powered on. Support Servo PWM, one-way and both-way Dshot300 & Dshot600.
(6) Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
(7) Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
(8) Support upgrade/parameters setup via ESC Config Tool/web.
(9) Compact layout with light weight, suitable for UAV with limited arm space.
(10) Monitoring core data such as temperature, voltage, current, and rpm precisely.
(11) Adapt double-stranded silicone wires as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
(12) Equipped with an aluminum alloy radiator, efficiently dissipating heat and improving working stability.
| Model | Atlas Sink 16S160A G1(AM32) |
| Firmware | AM32_WBPTECH_AT1680G1_F421_2.19 |
| Voltage | 5S~16S Lipo |
| Peak Current | 240A(3s); 200A(10s) |
| Continuous Current | 160A(35s); 80 A(5 mins, under good heat dissipation condition) |
| Programming Tool | ESC Config Tool |
| Import Source Support | PWM/ Dshot300/ Dshot600 |
| Data Transmission | TX Port |

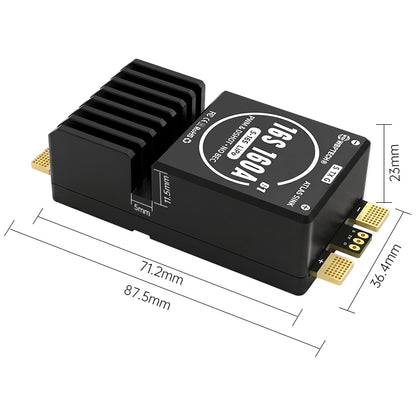

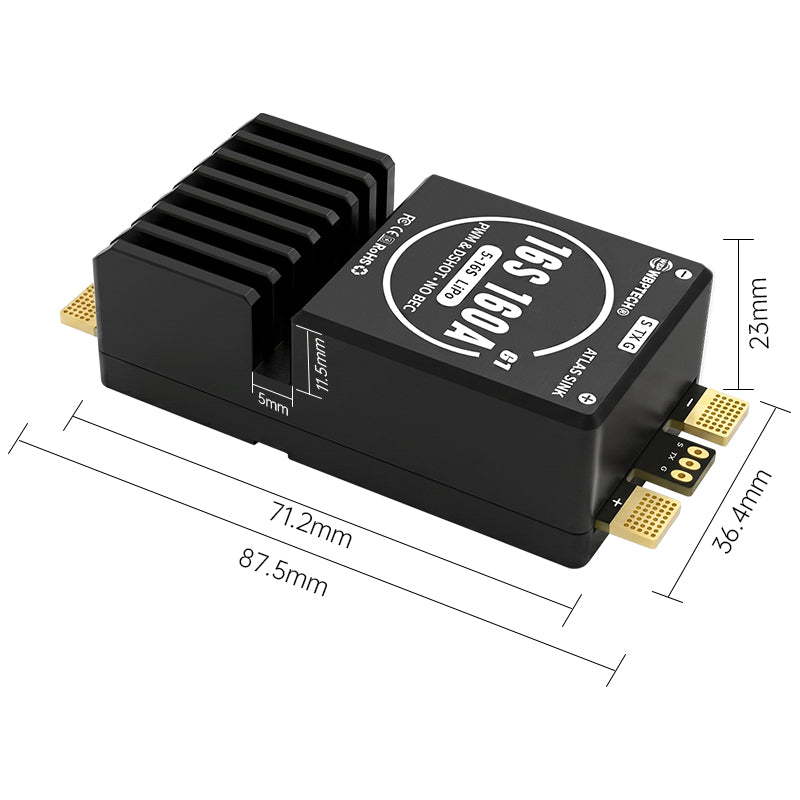

| Size | L87.5*W36.4*H23mm(with pad); L71.2*W36.4*H23mm(without pad) |

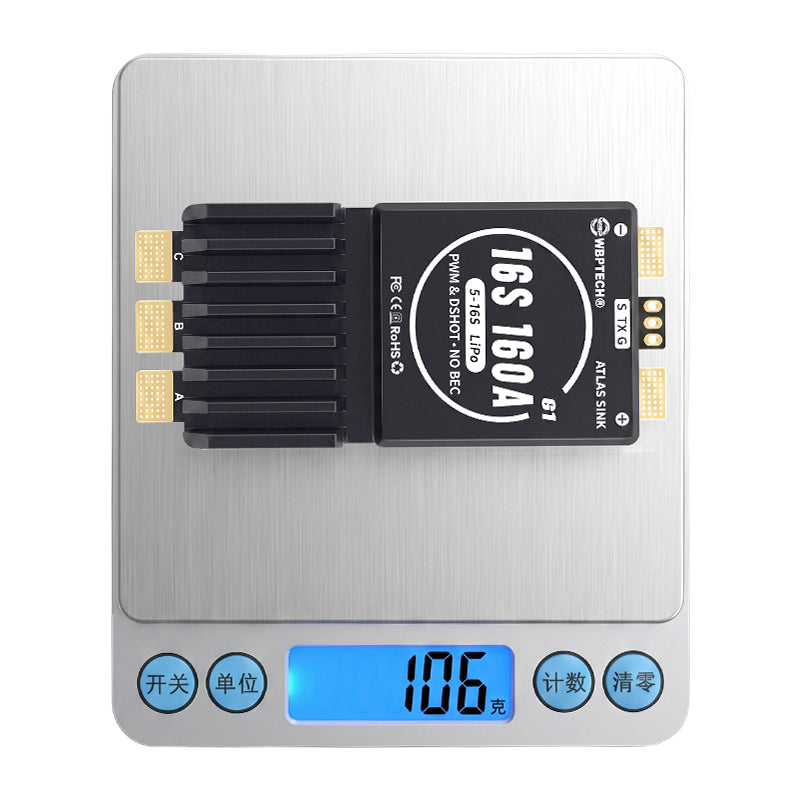

| Weight | 106g(without wires) |

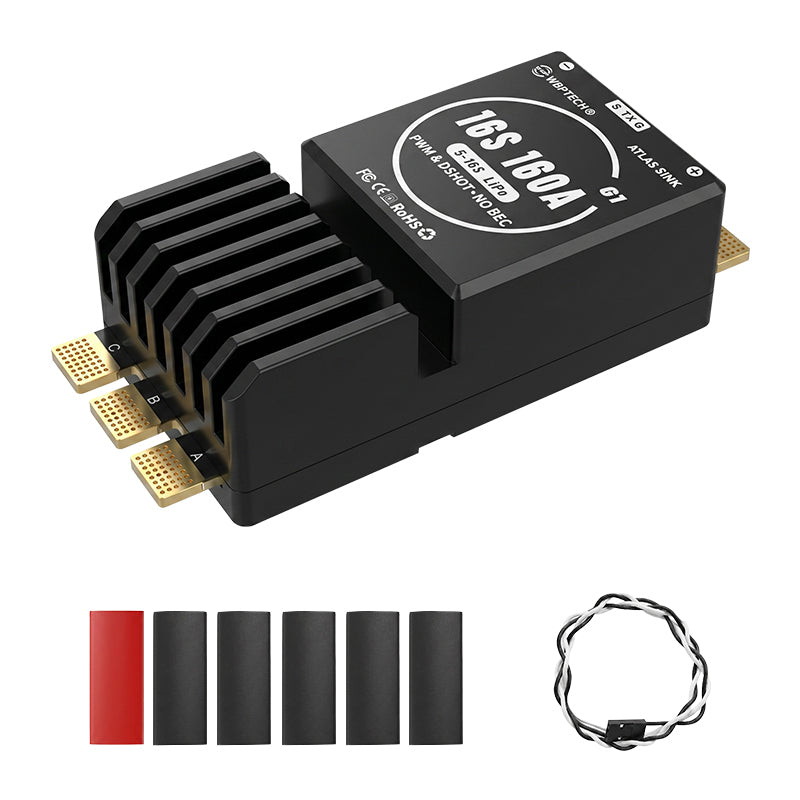

Package Included:
WBPTECH Atlas Sink 16S160A G1 ESC *1
Heat Shrink *6
Signal Wire *1
Packing Box *1
Antistatic Bag *1
