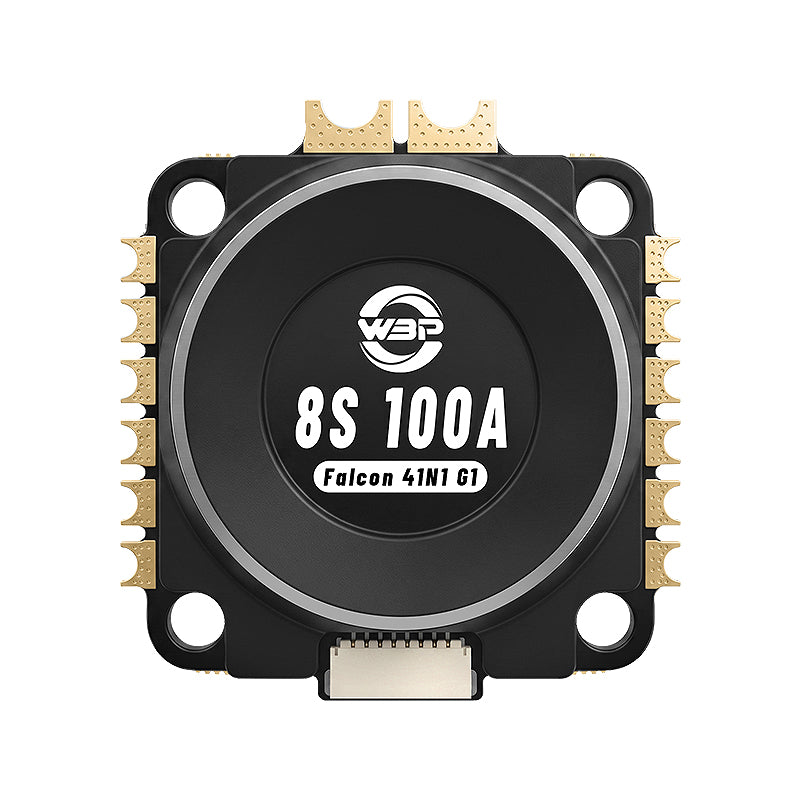

WBP Falcon 8S100A G1 ESC(AM32)
WBP Falcon 8S100A G1 ESC(AM32)
Specs:
| Model | Falcon 4In1 8S100A G1 |
| Firmware | AM32_WBP_FC8100G1_4IN1_G071_V2.20 |
| Voltage | 3S~8S Lipo |
| Peak Current | 120A(10s) |
| Continuous Current | 80A(45s); 45 A(5 mins, under good heat dissipation condition) |
| Programming Tool | ESC Config Tool |
| Input Source Support | PWM/ Dshot300/ Dshot600/ Dshot1200, Oneshot, Multishot |

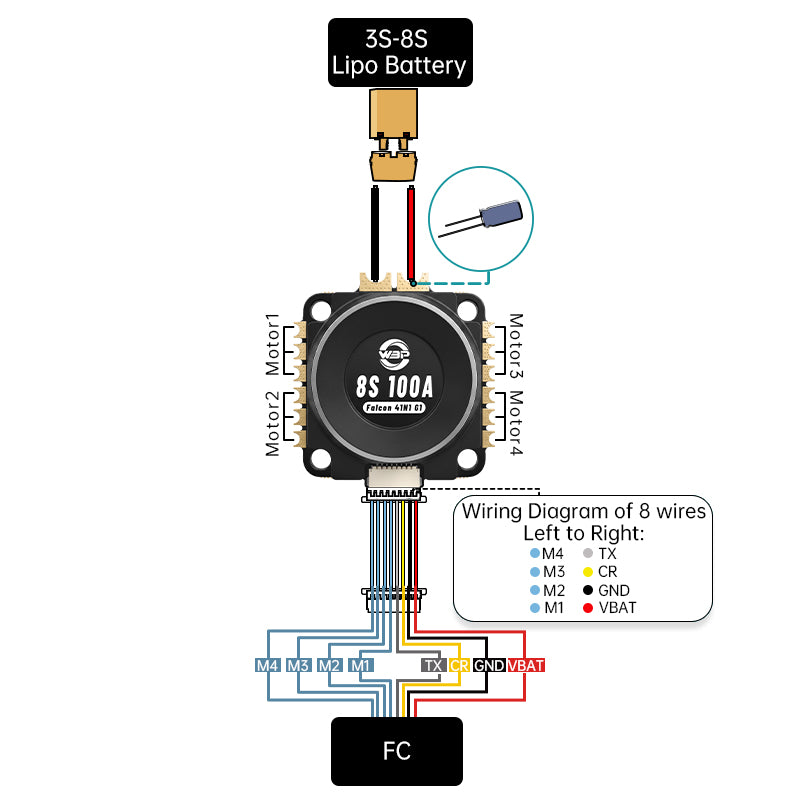

| Data Transmission | TX Port |

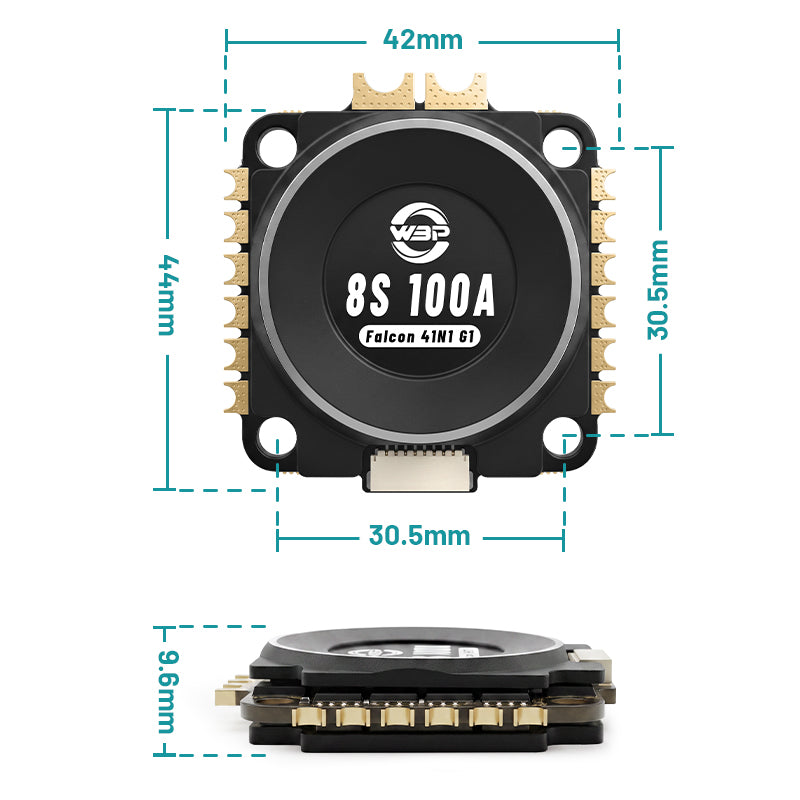

| Size | L42*W44*H9.6mm(with pad) |
| Install Pole Position | 30.5*30.5mm，Φ4mm/M3 |

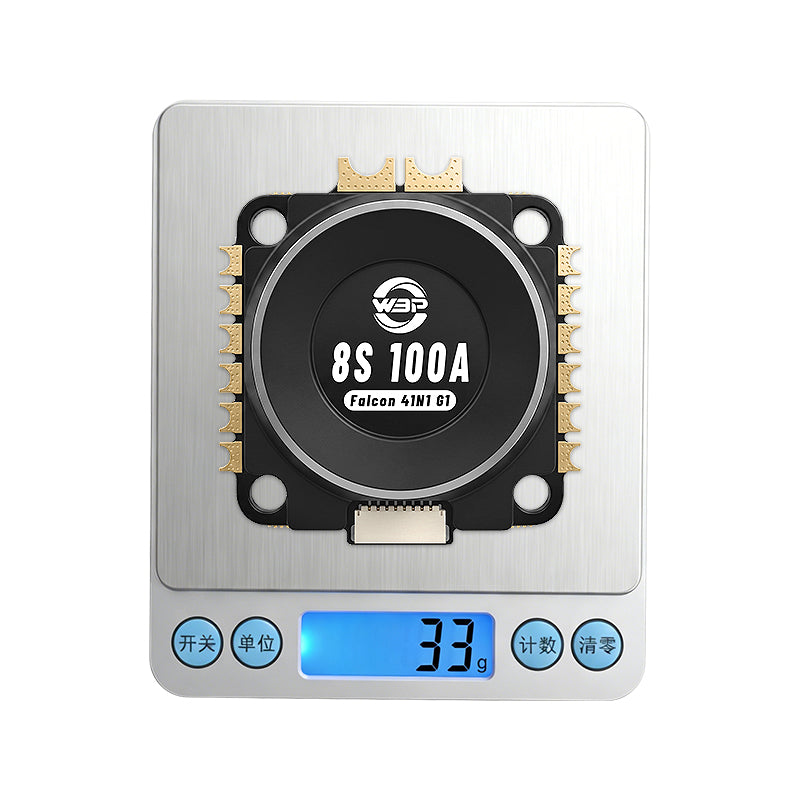

| Weight | 33g |
Features:
(1) High-performance CPU: core MCU: STM32G071, with high efficiency of 64MHZ.
(2) Adapt optimized AM32 with fast response and excellent performance.
(3) PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.Using a 8-layer design with a 3OZ thick copper layer as well as large-diameter copper strips on the main power lines, greatly increasing the current-carrying and heat dissipation capability.
(4) Wide voltage input: support 3~8S Li-po input, suitable for 5-13 inches medium and low-voltage drones with X-Class structure.
(5) Support multiple input source: once ESC was powered on, it will auto detect the throttle signal. Support Servo PWM, one-way Dshot(300,600,1200), both way Dshot(300,600).
(6) Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
(7) Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
(8) Support upgrade/parameters setup via ESC Config Tool/web.
(9) Compact layout with light weight, suitable for UAV with limited arm space.
(10) Built-in precise current sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
(11) Adapt silicone twisted pair as signal wires for easy wiring.

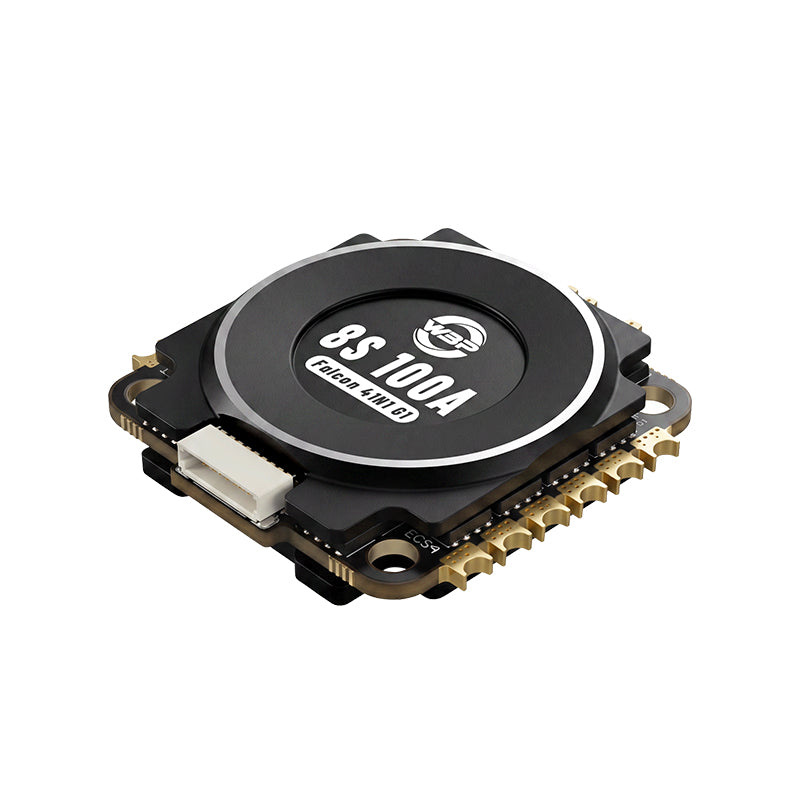

(12) Equipped with enhanced double-sided aluminium alloy heatsink for high efficiency cooling and long- term stability.
